  Home >> Products >> Ful >> Cleaner centrifugal pumps and Zixibeng

Yare-15



Performance Curve
(Safety tolerance should be reserved when selecting motor power)

Medium:20¡æclean water Rotating Speed:2920RPM Inpeller:Max.Dia:165mm Inlet Diameter: §¶63.5mm,DN65
Error: ¡À5% Frequency:50HZ Min.Dia:120mm Outlet Diameter: §¶50.8mm,DN50

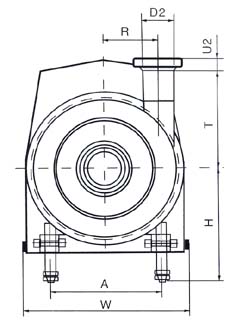

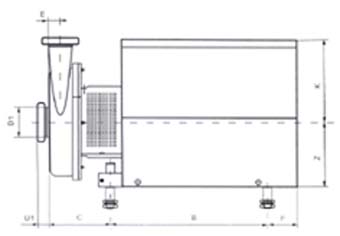

Size
£¨Motor Power£©
2.2KW
3KW
4 KW
5.5KW
7.5KW
A
140
160
190
216
216
B
255
320
320
400
400
C
146.5
149.5
149.5
154.5
145.5
E
32
32
32
32
32
F
96.5
73.5
88.5
72.5
112.5
H min
180
195
207
215
215
H max
220
265
277
305
305
K
161.5
186.5
198.5
215.5
215.5
R
85
85
85
85
85
T
142
142
142
142
142
W
248
272
272
322
322
Z
120
135
147
167
167
£¨kg£©Weight
45
57
68
85
92
Size ISO

ISO

DIN SMS BS DIN
D1
63.5
63.5
DN65
63.5
63.5
DN65
U1
21.5
21.5
26
24
21.5
24
D2
51
51
DN50
51
51
DN50
U2
21.5
21.5
24
20
21.5
24
