Yare-18
|
|
|
|
Performance Curve
(Safety tolerance should be reserved when selecting motor power) |
 |
 |
 |
| Medium:20¡æclean water |
RotatingSpeed:2920RPM |
Inpeller:Max.Dia:140mm |
Inlet Diameter: §¶101.6mm,DN100 |
| Error: ¡À5% |
Frequency:50HZ |
Min.Dia:120mm |
Outlet Diameter: §¶76.1mm,DN80 | |
|

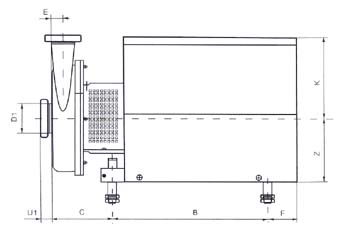

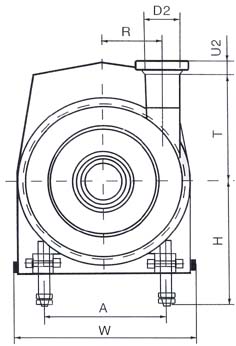

Size |
£¨Motor Power£© |
|
3KW |
4 KW |
5.5KW |
|
A |
160 |
190 |
216 |
|
B |
320 |
320 |
400 |
|
C |
163.5 |
163.5 |
168.5 |
|
E |
38.3 |
38.5 |
38.5 |
|
F |
73.5 |
88.5 |
72.5 |
|
H min |
195 |
207 |
215 |
|
H max |
265 |
277 |
305 |
|
K |
186.5 |
198.5 |
215.5 |
|
R |
73 |
73 |
73 |
|
T |
180 |
180 |
180 |
|
W |
272 |
272 |
322 |
|
Z |
135 |
147 |
167 |
|
£¨kg£©Weight |
57 |
68 |
85 | |
|
Size |
ISO |
ISO |
DIN |
SMS |
BS |
DIN |
|
D1 |
101.6 |
101.6 |
DN100 |
101.6 |
101.6 |
DN100 |
|
U1 |
28 |
28 |
31 |
35 |
30 |
24 |
|
D2 |
76.2 |
76.2 |
DN80 |
76.1 |
76.1 |
DN80 |
|
U2 |
21.5 |
21.5 |
26 |
24 |
21.5 |
24 | |
 |
 | |
|
|
|
